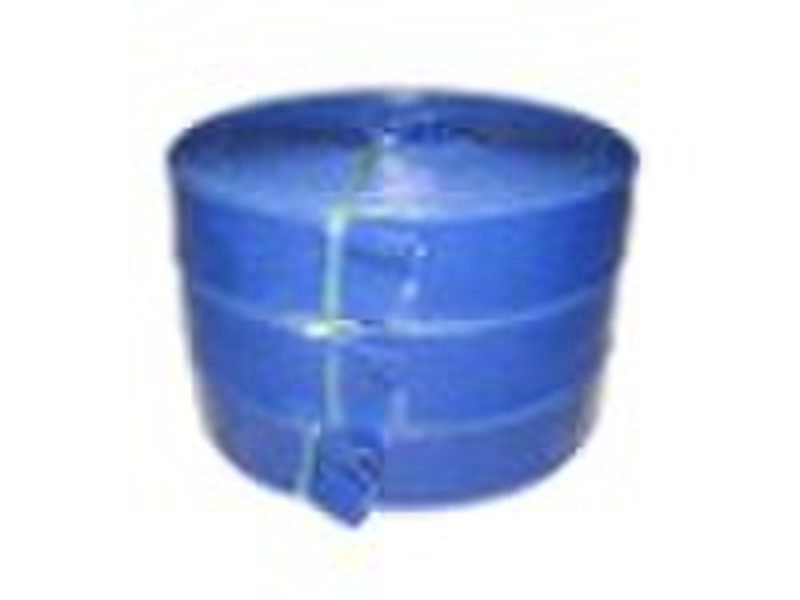

discharge flat hose

PVC Discharge hose APPLICATIONS:It is an ideal product used for driainage in the fields of agriculture irrigation, forestry sprinkler irrigationm, construction project, industrial and mining enterprise. CHARACTERISTICS:Choosing high strength polyester filament and high quality PVC, it is successively winded, parted the threads regularly and molded by plastic coated once. With an attractive appearance, soft surface and light weight, high burst pressure and long service life, the product is acid & alkali resistant, aging resistant, stretching resistant, anti-wrinkle, non-toxic, flavorless and enviromental protection. WORKING TEMPERATURE :-5°C-65°C BritishMearurementinch MetricMeasurement 0.2Mpa 0.3Mpa 0.4Mpa 0.6Mpa 0.8Mpa 1.0Mpa MaximumelongationatWP MaximumdiameterswellatWP (I.D.)MM 100m(kg) 100m(kg) 100m(kg) 100m(kg) 100m(kg) 100m(kg) % % 1 25 12 12.5 14 16 17.5 19 1 6 1-1/4 32 13.5 15 18 20 21.5 23 1 6 1-1/2 38 18 22 24 27 30 32 1 6 2 51 23 30 33 37.5 38 42 1 6 2-1/2 64 32 38 40 48 50 55 1 6 3 76 37.5 46 56 62 66 1 6 4 102 51 58 70 80 90 1 6 5 125 75 85 95 110 120 1 6 6 150 90 105 120 140 1 6 8 200 145 155 170 190 1 6 10 254 230 250 1 6 1mpa=10bar=10kg/cm2=145psi Custom Service Hose color:blue,green,yellow,red,blown.Other colors can be customized Stamp:specification or customer's logo stamp print atboth ends. Length:20-100m or nominated. Other wall thickness and weights can be nominated. If any question,please call me 86-13736587791.
